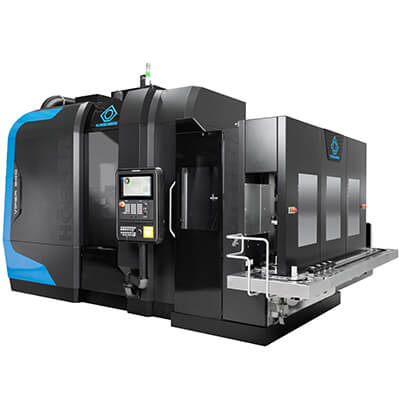

Speed Viper
Highlights
Advantages
Speed Viper
Advantages

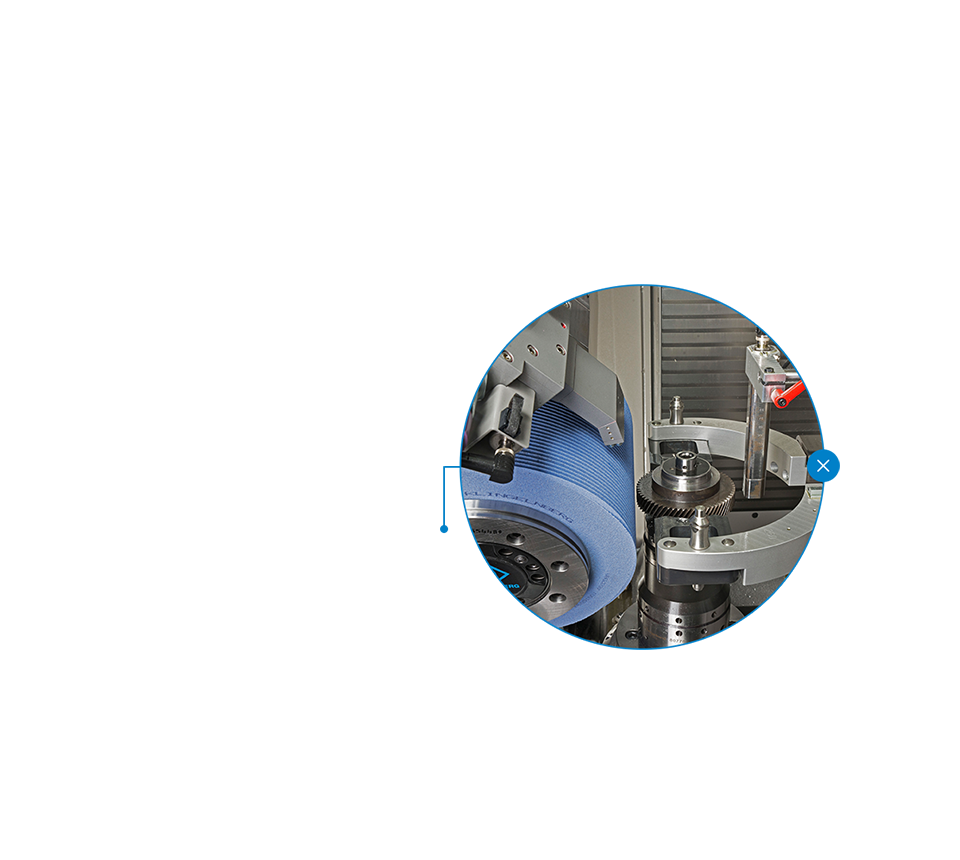

Innovative machine design for maximum productivity
- Cutting speeds up to 100 m/s
- Rugged machine design, made of vibration-damping cast polymer
- Optimal automation capability for minimal auxiliary times
- Use of long-life tools

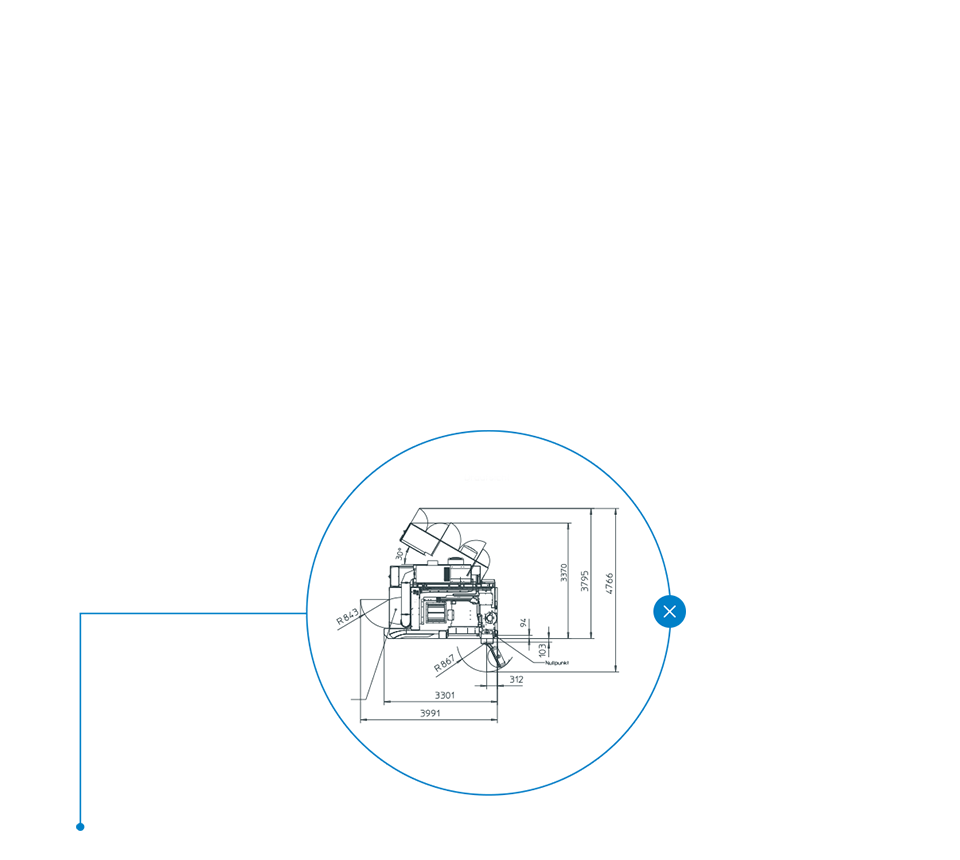

- Compact design with minimal travel paths in the process
- Large dressing roll diameters for a long service life
- High-performance, aerodynamic nozzle for effi cient coolant supply
Maximum flexibility in the grinding process
- Speed Viper platform covers a broad range of components (large travel paths)
- Integrated, automated configuration of table drive parameters based on workpiece inertia
- Automatic tool clamping system for minimal set-up times
- Tool diameters between 210 mm and 320 mm

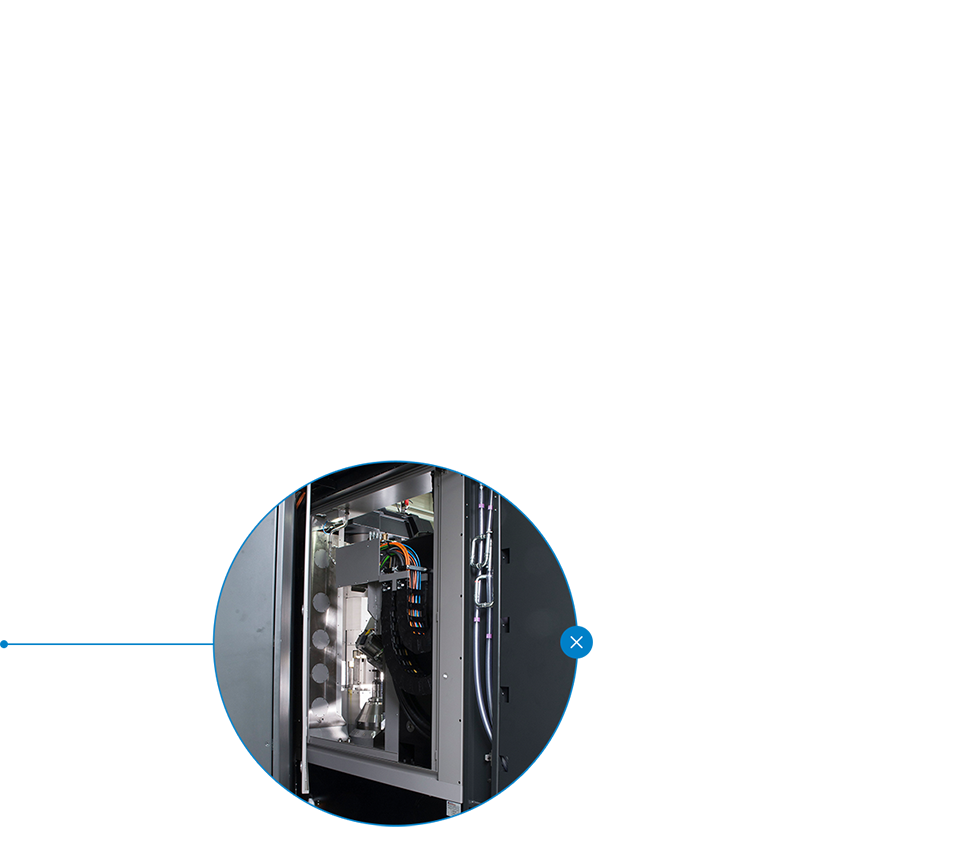

- Thermally stable machine design
- Flexible automation interface
Acoustically optimized cylindrical gears in largescale production
- Linking of gear design with production for acoustically optimized gears
- Rugged machine base (large guide width) for minimal gearing deviations in the process
- Dynamically optimized drives
- Two-plane balancing system for minimal excitation in the process
- Systematic implementation of the Klingelnberg closed loop system, which provides feedback to the grinding machine about the manufactured quality
Energy efficiency (e²) for maximum savings
- Flow-optimized coolant supply
- Pressure sensor on high-performance nozzle for fastest possible process start, as soon as adequate coolant is available
- On-demand optimization of drive control for permanent reduction of energy loss
- Systematic gear design with testing of producible geometries allows production of ultra-precise tooth geometries for optimized gear running behavior
-
Productivity -
Flexibility -
Precision -
Energy efficiency

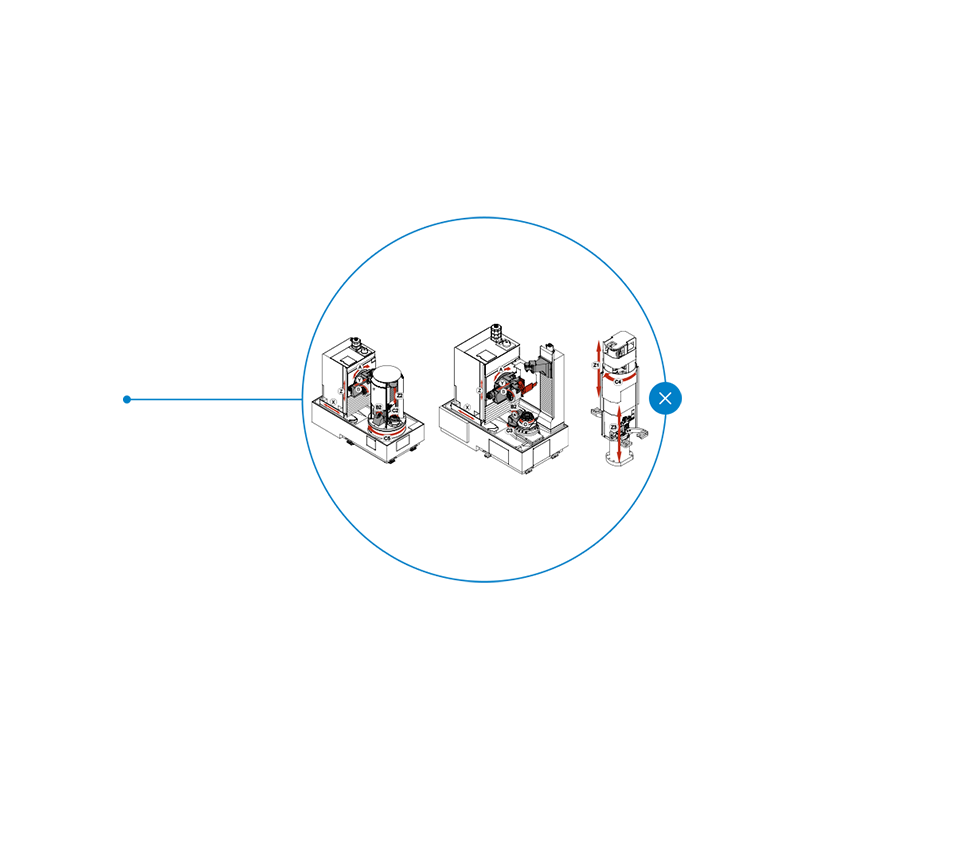

Product Variants
Different machine concepts
Product Variants

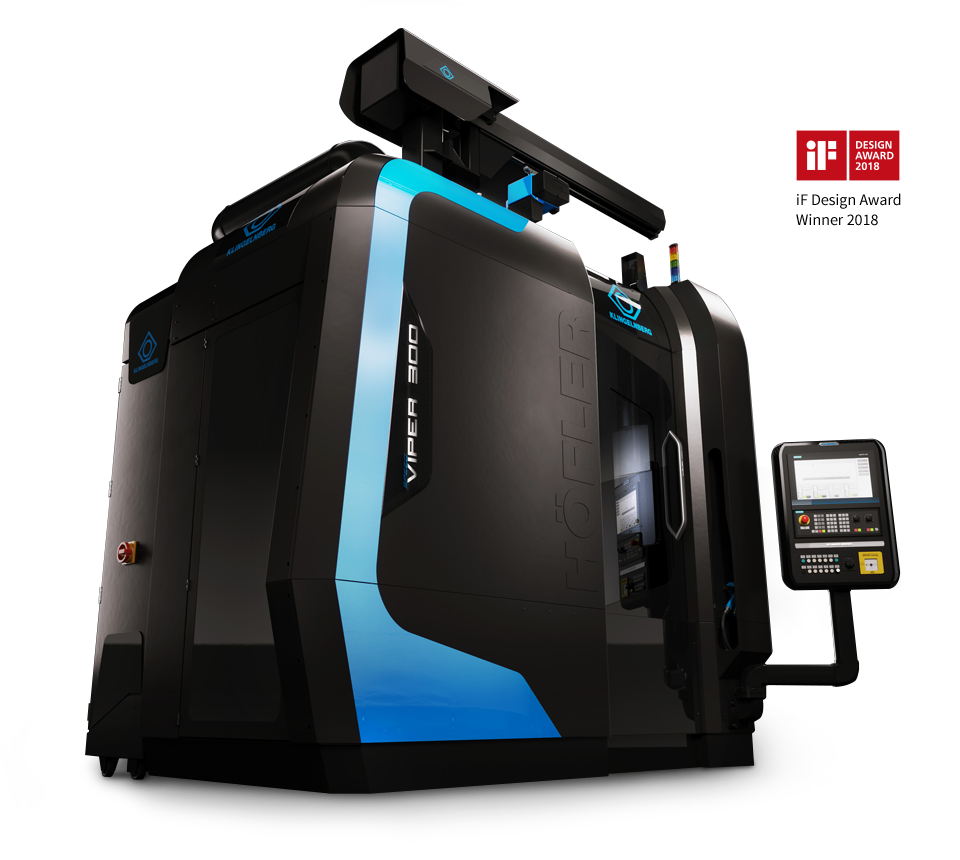

The Höfler cylindrical gear grinding machine Speed Viper – which focuses on highly productive generating grinding in large-series manufacturing is available in four different configurations based on individual requirements:
Grinding Technology
Speed Viper – More than just a generating grinding machine

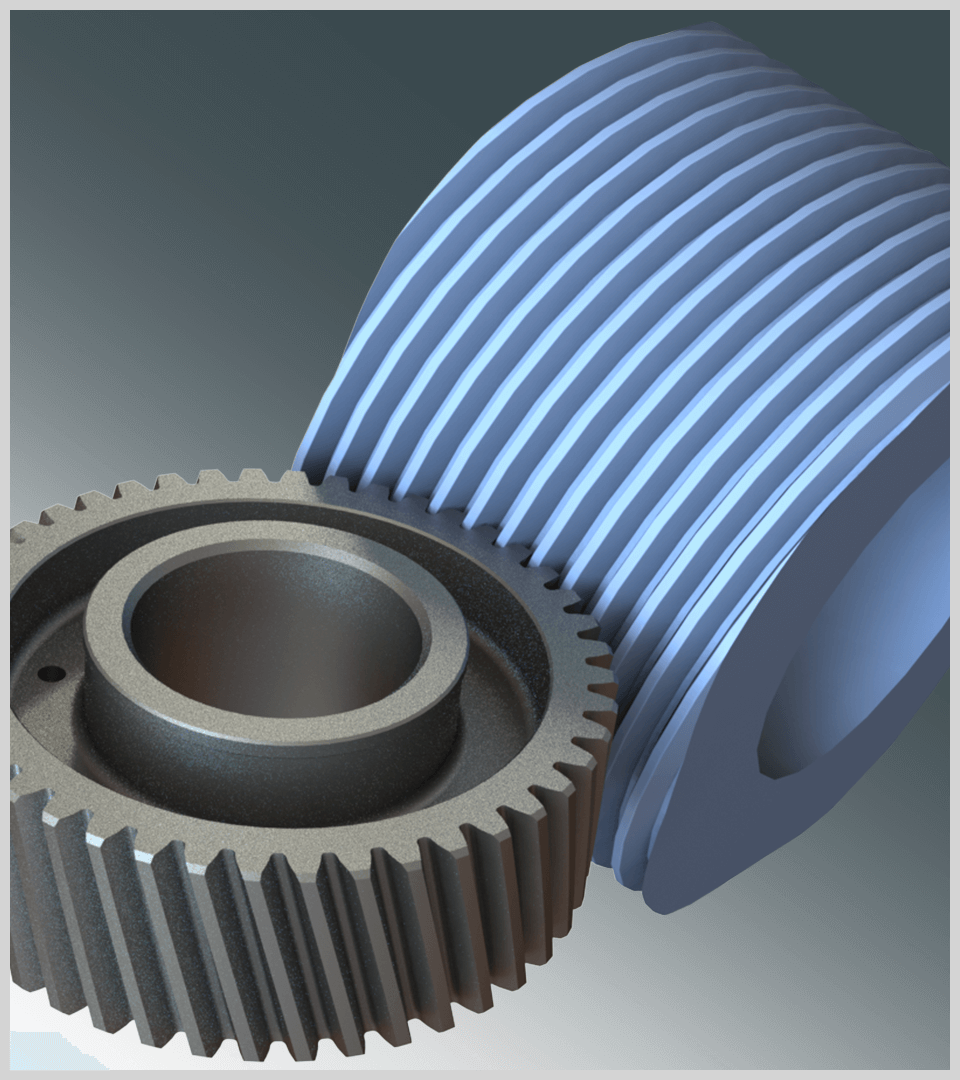

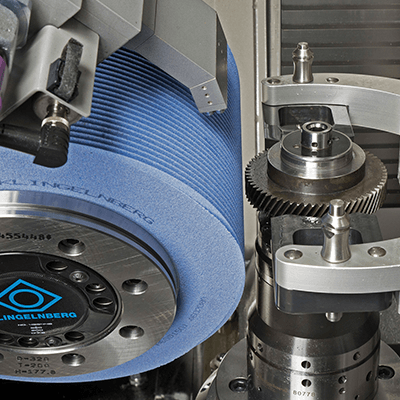

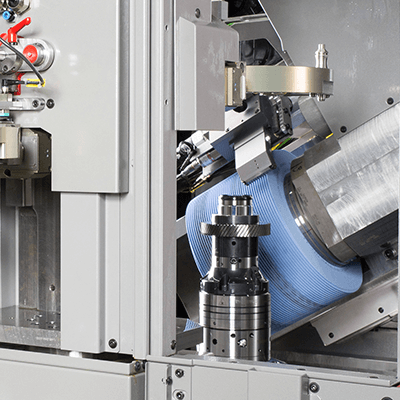

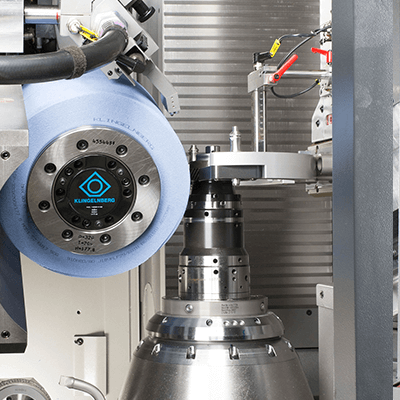

Generating grinding
Maximum productivity at cutting speeds up to 100 m/s

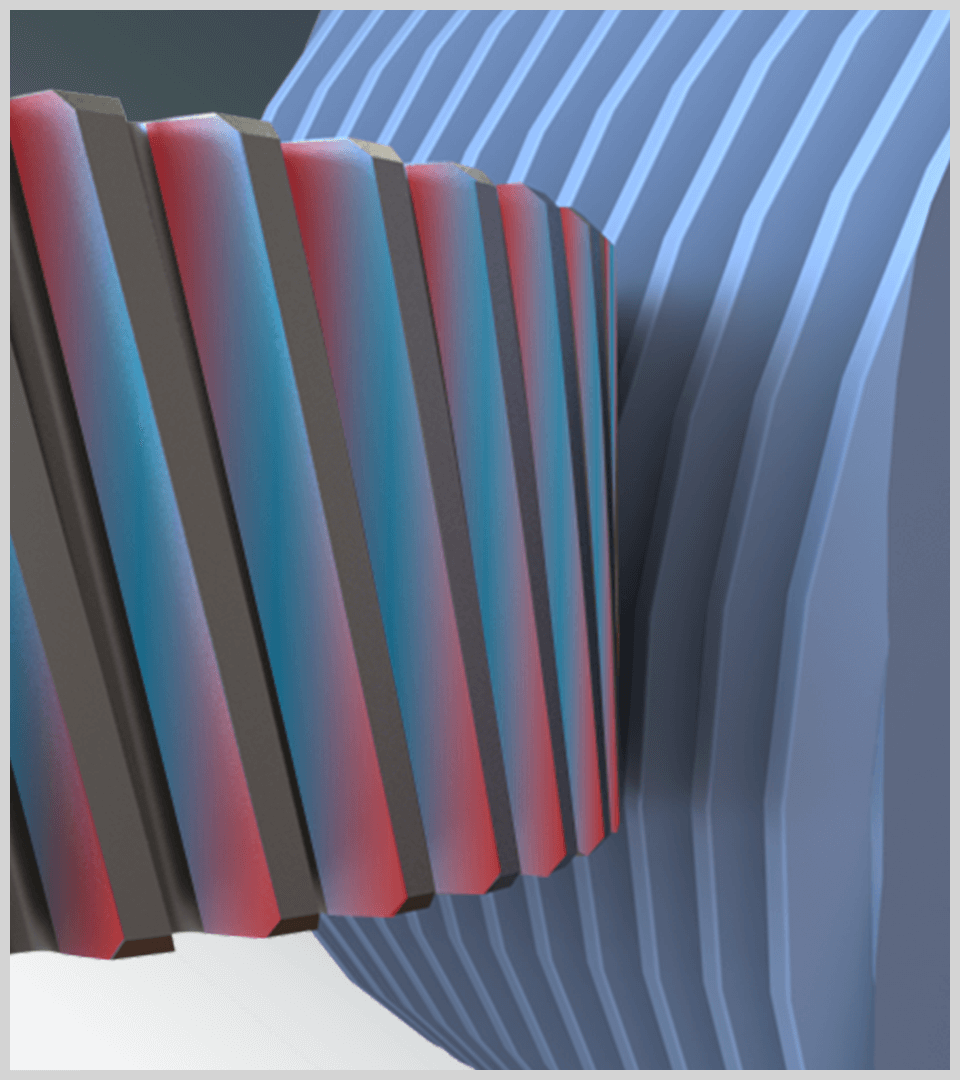

Topological grinding (optional)
Grinding of twist-free tooth flanks as well as targeted twists, incl. closed loop processing

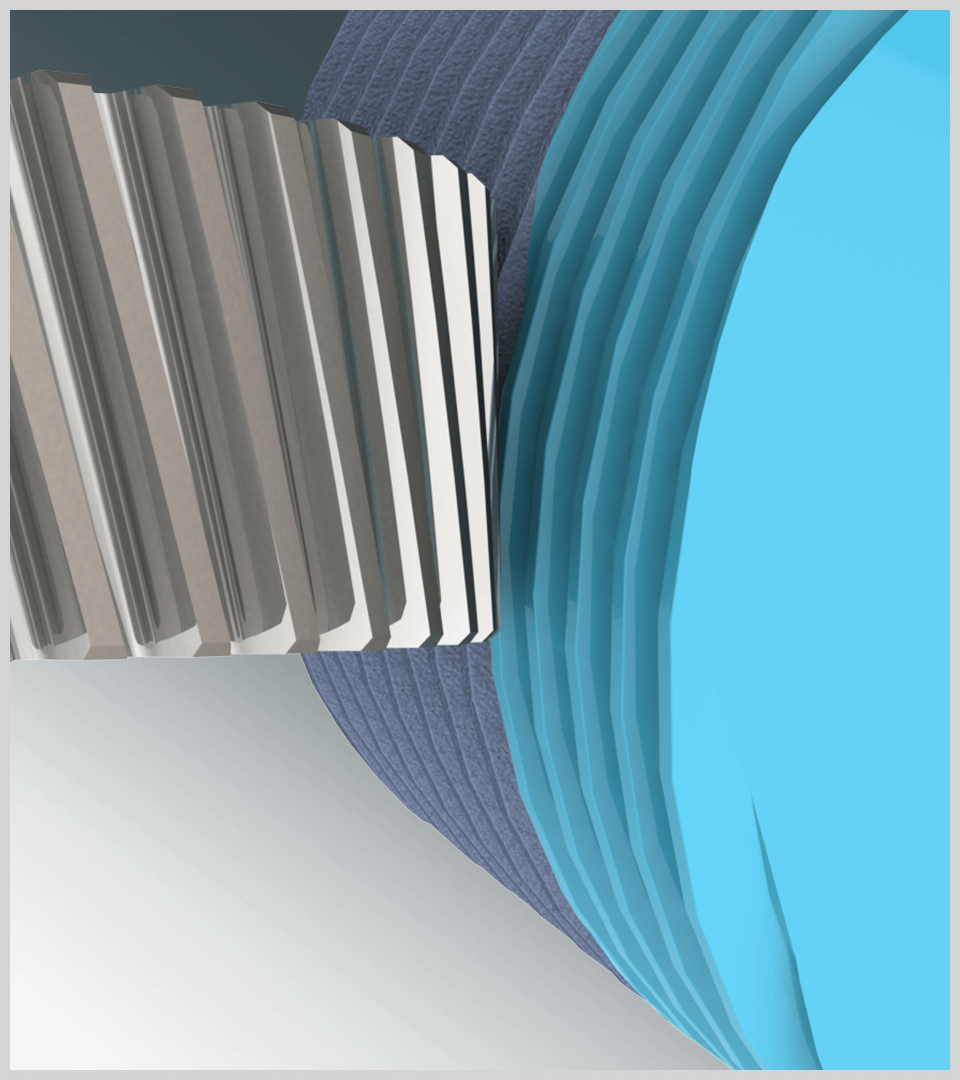

Polish grinding (optional)
Efficient gearingthrough the use of segmented tools with a total width of 200 mm

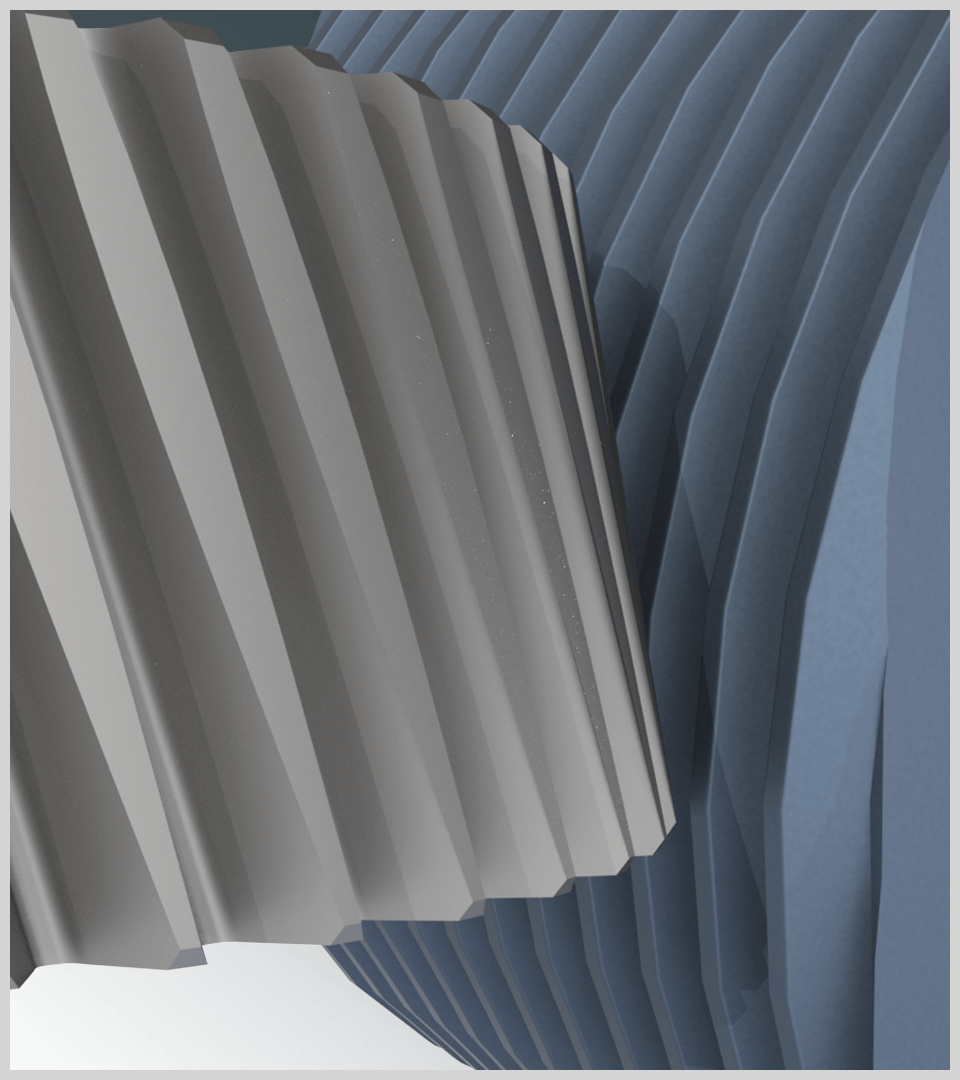

Beveloid gearing (optional)
Grinding of beveloid gearing, with freely definable flank modifications as needed for improved running behavior and optimized load capacity
Technical Details
Speed Viper
Operating Concept
Innovative
Operating Concept

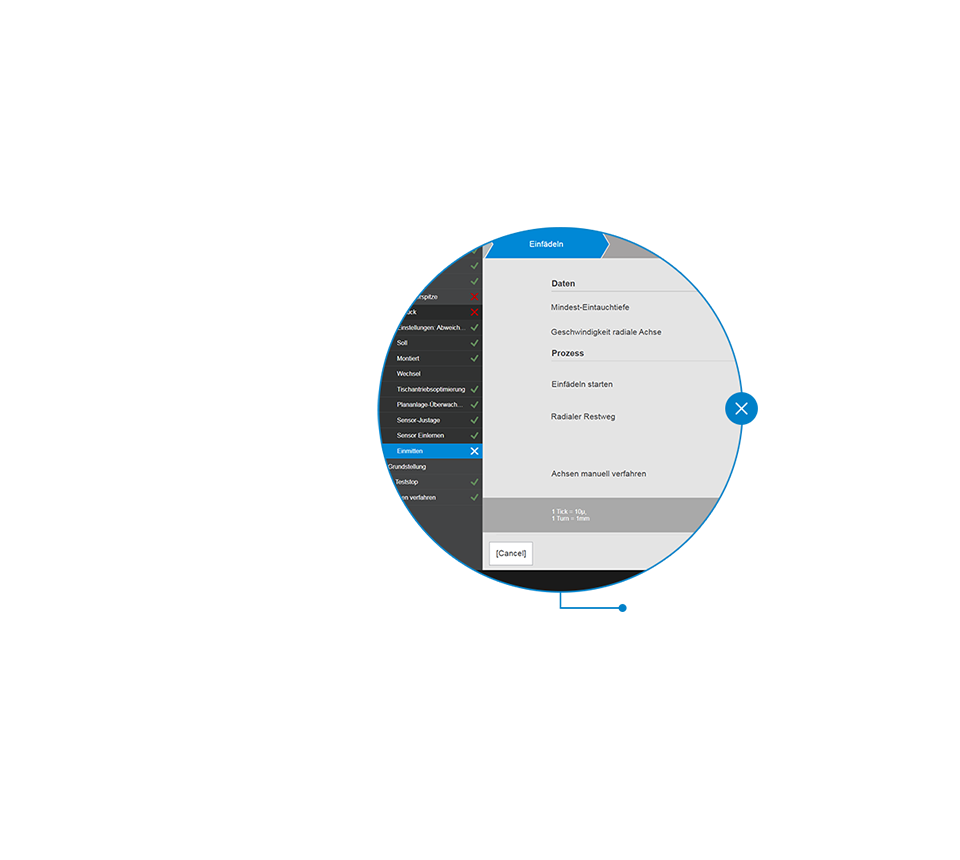

Gear Operator – process-oriented operator guidance with wizard technology
Powerful and reliable
- Reproducible quality through central management of relevant tool and process parameters
- Maximum productivity through custom machining and loading cycles
- Workpiece and device-dependent axis drive optimization
- Process analysis and control in parallel with grinding using independently operated control and display pages
- Collision management based on a dynamic three-dimensional machine model
- Automated quality control in Klingelnberg closed loop system
Convenient and clearly laid-out

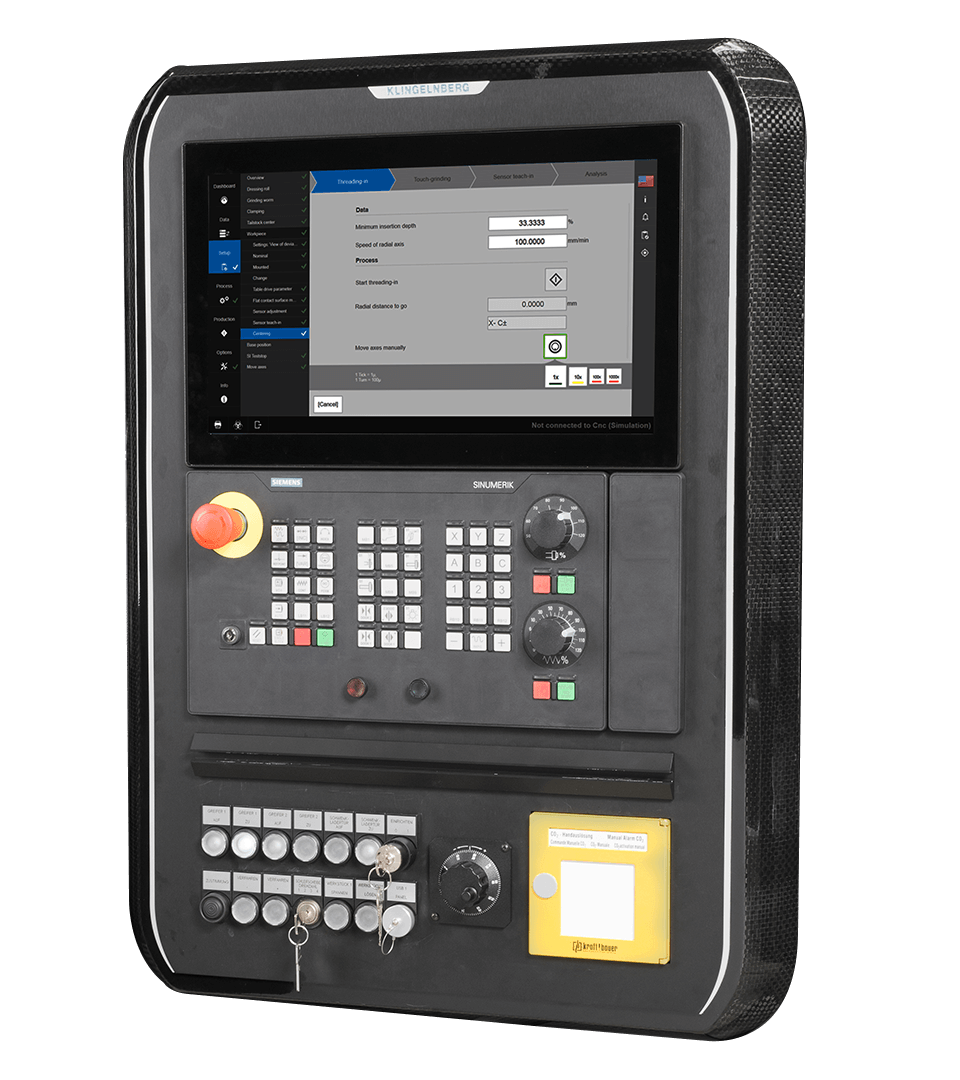

- Siemens Sinumerik 840 D SL control unit with 19-inch touchscreen display
- Intuitive user interface with process-oriented operator guidance
- Clarity through constantly visible menu structure and immediately responsive program logic
- Convenient setup with customized configuration of operating sequences
- Effective context-sensitive help with text, image and video material
Automation Concept
Speed Viper
Automation Concept
In addition, the Speed Viper with partial or full automation can be equipped with an automation interface that meets the VDMA 34180 standard:
- Speed Viper 300 and Speed Viper 180 with universal interface
- Speed Viper 300 and Speed Viper 180 with swivel loader and transfer area

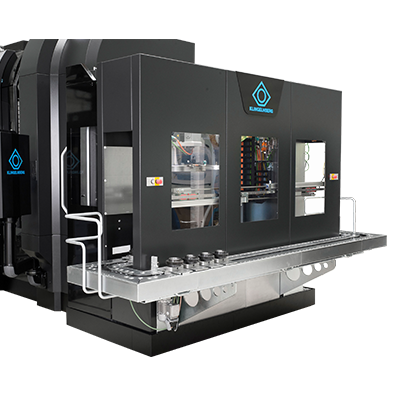

- Speed Viper 300 and Speed Viper 180 with swivel loader and Koenig CompactLoader
- Speed Viper² 180 and Speed Viper² 80 with Koenig CompactLoader
Speed Viper 300 and Speed Viper 180
- Direct loading of workpiece spindle by Koenig CompactLoader or any external automation system
- Automatic loading door
- Signal interface in accordance with VDMA standard 34180
- Auxiliary time depends on external automation

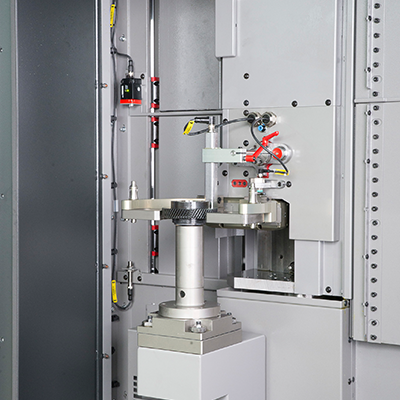

Speed Viper 300 and Speed Viper 180
- Workpiece spindle loading by integrated swivel loader
- Parallelization of loader and machine movements, since swivel loader is operated by the machine control unit
- Minimal auxiliary time: 5 s
- Loading of workpiece transfer by any external automation system with no impact on auxiliary time
- Alternative: Direct swivel loader access to a conveyor belt
- Signal interface in accordance with VDMA standard 34180

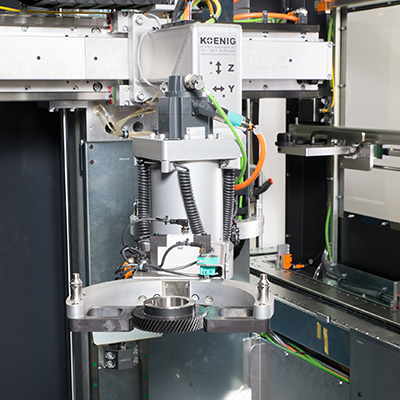

Speed Viper 300 and Speed Viper 180
- Workpiece spindle loading by integrated swivel loader
- Parallelization of loader and machine movements, since swivel loader is operated by the machine control unit
- Minimal auxiliary time: 5 s
- Loading of workpiece transfer by CompactLoader
- Optimally coordinated interfaces and sequences
- Identical gripper jaws on swivel loader and CompactLoader
Speed Viper² 180 and Speed Viper² 80
- Minimal auxiliary time (2 s) thanks to workpiece spindle change using rotary tower
- Loading of non-active workpiece spindle by CompactLoader in parallel with productive time
- No impact on auxiliary time caused by CompactLoader
- Optimally coordinated interfaces and sequences
-
Automation -
Universal interface -
Swivel loader / Transfer area -
Swivel loader / CompactLoader -
CompactLoader
More efficiency for your production

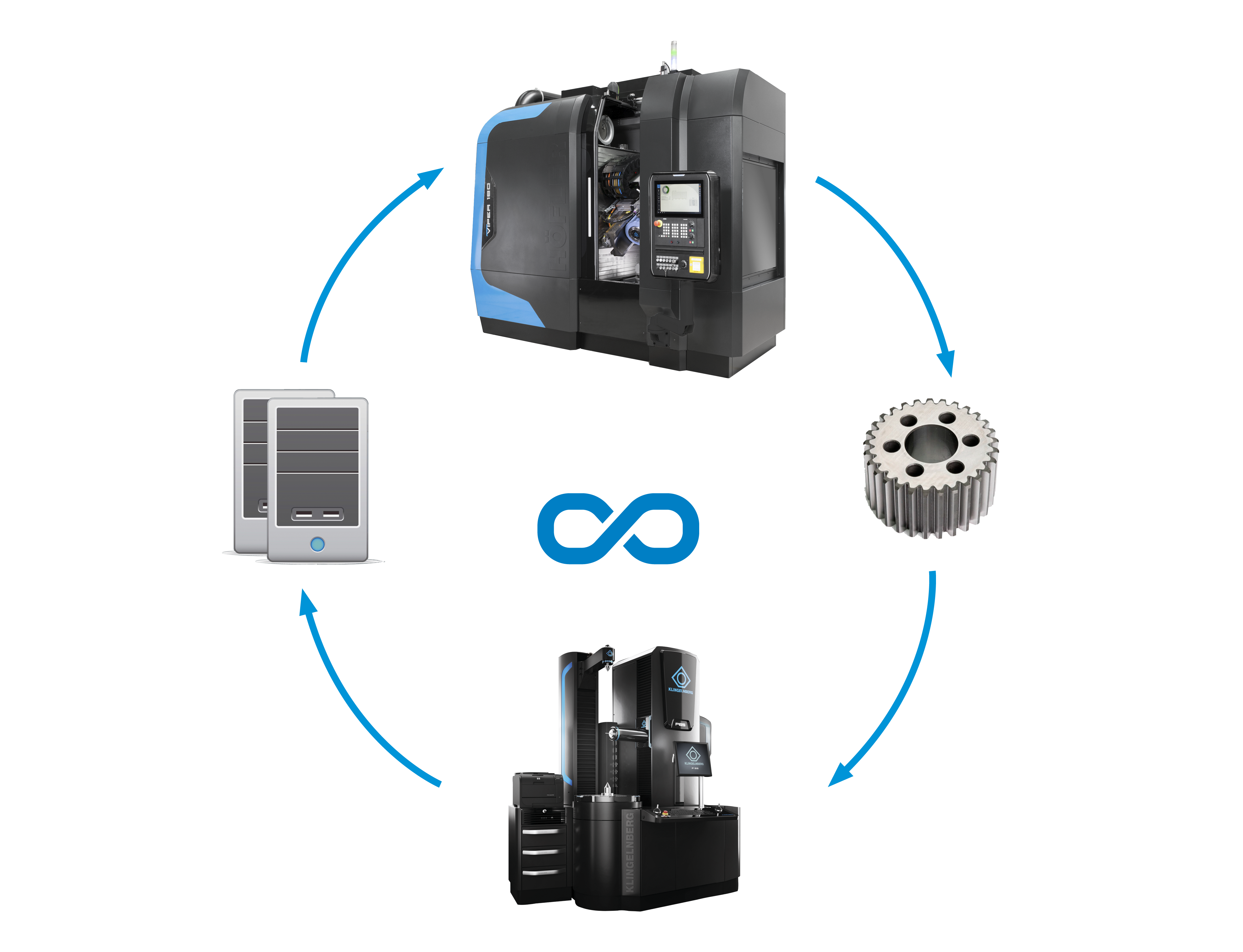

Closed Loop
Closed Loop Quality Control in line with Industry 4.0
- Central gearing and process design
- Networked connection in the Klingelnberg production system (GearEngine®)
- Knowledge management with central production data acquisition
- Digitization of gear production through automated machine correction
Speed Viper
Industry Solutions
Demands on the automotive industry:
Owing to the characteristics of the speed-torque curve in the electric motor, it is possible to adapt the product range to suit the tractive power requirement curve in vehicles using fewer gears than is the case with the combustion engine. But industry professionals all agree that gear transmissions will continue to be indispensable, even in an electrified powertrain. This is necessary to meet requirements for driving comfort, efficiency and vehicle costs.
Klingelnberg solution:
With GearEngine® and its Closed Loop approach, Klingelnberg has developed a exceptional solution for the process chain in cylindrical gear manufacturing. Owing to the quality-determining influence of hard finishing, the networking of Speed Viper with the Klingelnberg P series is a crucial step in ensuring the quality of the production process.
https://klingelnberg.com/en/industry-solutions/automotive
Speed Viper
Videos
SPEED VIPER
By clicking on the image you will leave our website and be redirected to www.youtube.com.
SPEED VIPER Double-Spindle Concept
By clicking on the image you will leave our website and be redirected to www.youtube.com.
Brochure
Downloads
Contact
We can help you
SWITZERLAND
Klingelnberg AG
Binzmühlestrasse 1718050 Zürich, Switzerland
Fon: +41 44 278 79 79
Fax: +41 44 273 15 94
info(at)klingelnberg.com
Germany
Klingelnberg Gmbh

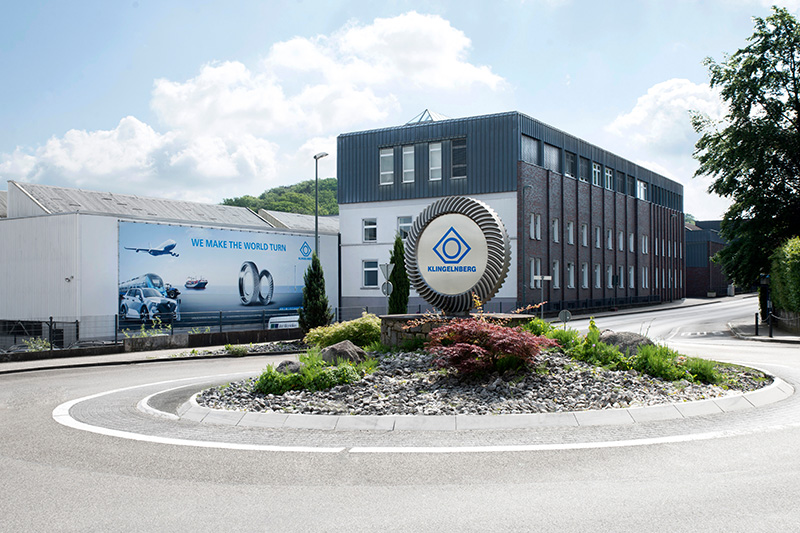

Peterstraße 4542499 Hückeswagen, Germany
